The Ultimate BMW i5 EV Service & Trim Guide!

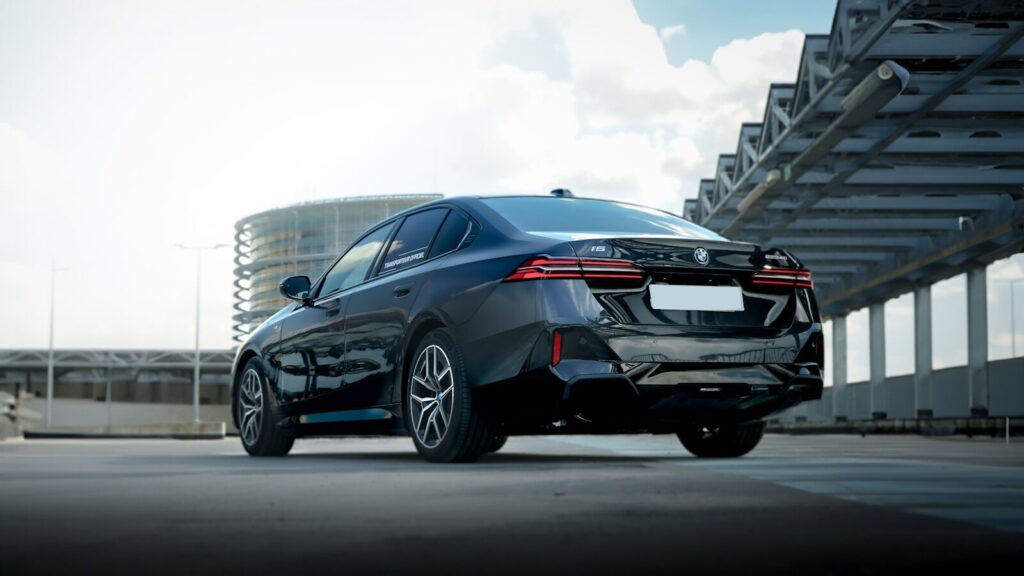

Image Explanation: The sleek and aerodynamic BMW i5 Electric Sedan, perfectly blending classic BMW driving dynamics with cutting-edge electric performance in the 5 Series platform.
Hi Drivers and DIY Mechanics! Welcome to the comprehensive guide dedicated entirely to the BMW i5 Electric Sedan here at www.servicemanuals.us. The i5 is a masterclass in modern engineering, integrating BMW’s 5th-generation eDrive technology seamlessly into the beloved 5 Series platform.
Let’s break down the i5 lineup, dive deep into what you need to know about its specific maintenance, and map out where you can get it officially serviced in the US!
Step 1: Choose Your Magic i5 Trim!
The BMW i5 family offers everything from efficient daily drivers to track-ready electric M models. Which one is sitting in your garage?
1. The Smart Entry: BMW i5 eDrive40
Image Explanation: The BMW i5 eDrive40, offering a perfect, accessible entry point to electric Bavarian luxury and efficiency in the 5 Series.
The eDrive40 is the smart, efficient entry into the i5 lineup. It uses the advanced 81.2 kWh battery pack and a single rear-mounted electric motor. From a service perspective, it shares the exact same complex high-voltage cooling architecture as its bigger brothers.
- Super Power: 335 horsepower (Rear-Wheel Drive).
- Fastness (0-60 mph): ~5.7 seconds.
- Service Focus: Rear air suspension diagnostics and standard eDrive motor brush module checks.
2. The Versatile Performer: BMW i5 xDrive40
Image Explanation: The capable BMW i5 xDrive40 delivering all-weather performance and strong range on highways and city streets.
If you want all-weather capability without sacrificing too much range, the xDrive40 is your car. It features the same 81.2 kWh battery pack. The xDrive40 adds a motor to the front axle for All-Wheel Drive. Servicing the xDrive model requires additional steps to check the front e-Motor cooling loops and front axle half-shafts.
- Super Power: 394 horsepower (All-Wheel Drive).
- How far can it go?: Up to 270 miles (xDrive40).
- Service Focus: Dual-motor cooling loop bleeding (xDrive) and Battery Management Electronics (SME) balancing.
3. The High-Performance Athlete: BMW i5 M60 xDrive
Image Explanation: The aggressive BMW i5 M60 xDrive showing off its M-specific badging, sport brakes, wide stance, and powerful dual-motor setup.
The i5 M60 xDrive is the pinnacle of the lineup — a fully electric 5 Series tuned by the BMW M Division! It features dual motors, adaptive M suspension, and upgraded M Sport brakes. The service manual for this model includes highly specific procedures for its active suspension and high-voltage Sport Boost systems.
- Super Power: A massive 590 horsepower and 605 lb-ft of torque!
- Fastness (0-60 mph): A blistering 3.8 seconds.
- Service Focus: Adaptive M Suspension strut calibration and M Sport brake fluid bleeding procedures.
⚠ Stop! Read This About the BMW i5 Service Manual!
Image Explanation: A certified technician viewing the official BMW ISTA diagnostic software to safely de-energize an i5 battery pack.
At www.servicemanuals.us, we want you to understand your car, but the BMW i5’s 5th Generation eDrive system runs on a lethal 400-volt architecture. For accurate torque specs, wiring diagrams, and the official BMW i5 Service Manual, you must utilize BMW’s official platforms:
- BMW TIS (Technical Information System): The official portal for accessing factory repair procedures, AIR (Aftersales Information Research), and the ISTA software needed to code new modules.
- Safety First: Never touch the orange cables! The service manual explicitly requires using the High-Voltage Safety Disconnect (located in the trunk area) and a multimeter to verify 0 volts before performing any major service.
Step 2: Keeping Your i5 Happy (Maintenance Schedule)
Your BMW i5 uses Condition Based Service (CBS), meaning the iDrive 8/8.5 screen will alert you when service is due. However, standard EV maintenance is much lighter than a traditional gas-powered 5 Series.
Mechanic’s Secret! The BMW i5 is unique because it shares a platform (CLAR) with gas-powered 5 Series cars. To give the EV a flat stance and perfect weight distribution, BMW included adaptive air suspension on higher trims (standard on M60, optional on others)! The service manual details that if the car is ever lifted on a two-post hoist, the air suspension MUST be placed into “Jack Mode” via the iDrive menu to prevent popping the air springs!
Every 10,000 Miles (or 1 Year)
- Tire Inspection: Most i5s (especially the M60) come with staggered tire setups (wider tires in the rear). This means you cannot rotate them front-to-back. You must inspect them closely for inner tread wear caused by the car’s heavy weight and instant torque.
- Drainage Check: Mechanics will clear the drainage channels around the sunroof and the windshield cowl to prevent water from entering the CCU (Combined Charging Unit).
Every 20,000 Miles (or 2 Years)
- Brake Fluid Flush: BMW rigidly enforces a brake fluid change every two years. Old fluid absorbs moisture and can corrode the expensive ABS modules.
- Microfilter (Cabin Filter): Replace the advanced cabin filter to ensure the HVAC system doesn’t overwork and the air remains pure.
- Coolant Level Verification: The i5 uses specialized low-conductivity coolant. A tech will verify there are no leaks around the battery heat exchanger.
Step 3: BMW Certified i5 Service Locations in the US
When it’s time to service the adaptive air suspension, flush the battery coolant, or update the CCU software via ISTA, you need a certified BMW Service Center. Here are some top-rated official locations across the US with active Google Maps links for easy navigation:
- Los Angeles Area: Visit Beverly Hills BMW Service Center on Wilshire Blvd. They are fully equipped to handle high-voltage i5 Sedan diagnostics.
- Houston Area: Check out BMW of West Houston Service Center in Katy, TX, featuring massive bays for dropping battery packs if cell module balancing is required.
- Miami Area: Head to Braman BMW Service & Parts in South Florida for expert care on your M60’s adaptive suspension.
- Chicago Area: Stop by Perillo BMW Service Center in downtown Chicago to prep your xDrive40 for harsh winter driving conditions.
- New York City: Navigate over to BMW of Manhattan Service Center right in the heart of the city for state-of-the-art i5 care.
Enjoy the silent thrill, keep an eye on your iDrive alerts, and drive the Ultimate Electric Driving Machine!
